Supreme Info About Can A VFD Slow Down Motor

Unlocking Motor Control

1. The Speed Demon Dilemma

Ever watched a motor spin and thought, "Wow, that's...enthusiastic?" Sometimes, motors are like that overly caffeinated friend — always on full blast. But what if you don't need all that power? What if you need finesse, control, a gentle purr instead of a roaring engine? That's where the Variable Frequency Drive, or VFD, comes swaggering onto the scene. Think of it as the motor's personal volume knob.

In many industrial and commercial applications, motors are the workhorses that keep things running. From powering conveyor belts in a manufacturing plant to driving pumps in a water treatment facility, these motors are essential. However, running a motor at its full speed constantly isn't always necessary or efficient. Imagine driving your car at top speed everywhere you go — it would be a waste of fuel and wear and tear on the vehicle. The same principle applies to motors.

The ability to precisely control a motor's speed offers significant benefits. It can lead to energy savings by reducing power consumption when full speed isn't required. It can also improve process control, allowing for more accurate and consistent results in various applications. Furthermore, slowing down a motor can extend its lifespan by reducing mechanical stress and wear on its components.

So, the question remains: Can a VFD actually tame this beast of burden, this spinning whirlygig of power? Let's dive in and find out if these devices truly live up to their promise of speed control and efficiency.

What Exactly IS a VFD, Anyway?

2. VFDs

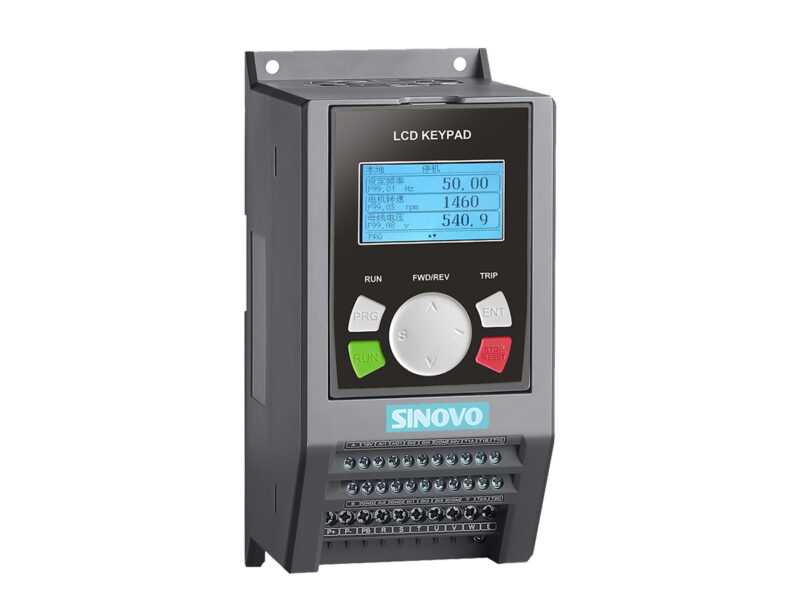

Okay, so you've heard the term "VFD" thrown around, but what is it really? In simple terms, a VFD is an electronic device that controls the speed of an AC (Alternating Current) motor. It does this by varying the frequency of the electrical power supplied to the motor. Imagine you're tuning a radio. By changing the frequency, you select different stations. A VFD does something similar, but instead of radio waves, it manipulates the electrical frequency to alter the motor's speed.

Unlike a simple on/off switch or even a traditional motor starter, a VFD provides a much more sophisticated level of control. It allows you to gradually ramp up or ramp down the motor's speed, providing smooth acceleration and deceleration. This is particularly useful in applications where sudden starts and stops could cause damage or instability.

Inside a VFD, you'll find a complex array of electronic components, including rectifiers, inverters, and control circuitry. The rectifier converts the incoming AC power into DC (Direct Current) power. The DC power is then filtered and smoothed before being fed to the inverter. The inverter converts the DC power back into AC power, but with a variable frequency and voltage. This variable AC power is then supplied to the motor, allowing it to run at different speeds.

Think of the VFD as a translator. It takes the standard AC power from the wall and converts it into a customized power signal perfectly tailored to the motor's needs, allowing you to achieve the desired speed and torque.

The Mechanics of Slowing Down

3. Frequency is Key

Here's the juicy bit — how does a VFD actually make a motor slow down? The secret lies in manipulating the frequency of the electrical power. AC motors are designed to run at a specific speed determined by the frequency of the power supply. In most parts of the world, that frequency is either 50 Hz or 60 Hz. A VFD can change this frequency, effectively telling the motor to spin faster or slower.

For instance, if you reduce the frequency from 60 Hz to 30 Hz, the motor will, in theory, run at approximately half its normal speed. This is because the motor's synchronous speed is directly proportional to the frequency of the power supply. By decreasing the frequency, you're essentially slowing down the rotating magnetic field inside the motor, which in turn reduces the motor's rotational speed.

But it's not just about reducing the frequency. A VFD also adjusts the voltage supplied to the motor to maintain a constant voltage-to-frequency ratio. This is important because it prevents the motor from overheating or losing torque at lower speeds. If the voltage is not reduced proportionally with the frequency, the motor could become saturated and draw excessive current, leading to damage.

The VFD constantly monitors the motor's performance and adjusts the frequency and voltage accordingly to maintain the desired speed and torque. It's a delicate balancing act, ensuring that the motor operates efficiently and reliably at all times.

Benefits Beyond Speed

4. Energy Savings, Smoother Operations, and More!

Okay, so a VFD can slow down a motor. Great. But what's the big deal? Well, it turns out that using a VFD comes with a whole host of other benefits beyond just speed control. One of the most significant advantages is energy savings. When a motor is running at full speed but doesn't need to be, it's wasting energy. A VFD allows you to reduce the motor's speed to match the actual demand, significantly reducing energy consumption.

For example, imagine a pump used to maintain water pressure in a building. Without a VFD, the pump would run at full speed all the time, even when the demand for water is low. With a VFD, the pump's speed can be reduced during periods of low demand, saving energy and reducing wear on the pump.

Another benefit of using a VFD is smoother operation. VFDs provide gradual acceleration and deceleration, which reduces mechanical stress on the motor and connected equipment. This can extend the lifespan of the motor and reduce the need for maintenance. Additionally, the smooth starts and stops provided by a VFD can prevent water hammer in pumping systems and reduce wear on belts and gears in other applications.

Furthermore, VFDs often include advanced control features such as PID (Proportional-Integral-Derivative) control, which allows for precise control of the motor's speed and torque. This can improve process control in a variety of applications, from controlling the flow rate of a liquid to maintaining the tension on a web of material.

Are VFDs Right for You? Weighing the Pros and Cons

5. Not a Magic Bullet, But Pretty Darn Close

While VFDs offer numerous advantages, they're not a one-size-fits-all solution. There are certain factors to consider before investing in a VFD. The initial cost of a VFD can be higher than that of a traditional motor starter. However, the energy savings and reduced maintenance costs can often offset this initial investment over time. It's essential to perform a cost-benefit analysis to determine if a VFD is the right choice for your specific application.

Another consideration is the potential for harmonic distortion. VFDs can generate harmonic currents that can affect the power quality of the electrical system. In some cases, it may be necessary to install harmonic filters to mitigate these effects. However, modern VFDs often incorporate features to reduce harmonic distortion, making them more compatible with existing electrical systems.

It's also important to choose the right VFD for your motor and application. Factors to consider include the motor's horsepower rating, voltage, and current requirements, as well as the specific requirements of the application, such as the need for constant torque or variable torque operation. Consulting with a qualified electrical engineer or VFD supplier can help you select the right VFD for your needs.

Ultimately, the decision of whether or not to use a VFD depends on a variety of factors. However, if you're looking for a way to save energy, improve process control, and extend the lifespan of your motors, a VFD is definitely worth considering. They offer a powerful and versatile solution for controlling the speed and performance of AC motors.

FAQ

6. Your Burning Questions Answered!

Still have questions about VFDs and their ability to slow down motors? Let's tackle some frequently asked questions:

Q: Will slowing down a motor with a VFD reduce its torque?

A: Not necessarily! VFDs are designed to maintain a constant voltage-to-frequency ratio, which helps to maintain torque even at lower speeds. However, at very low speeds, the motor's torque capability may be reduced. It depends on the specific motor and VFD configuration.

Q: Can I use a VFD on any AC motor?

A: Generally, yes, you can use a VFD on most AC induction motors. However, it's essential to ensure that the VFD is properly sized for the motor and that the motor is compatible with VFD operation. Some older motors may not be suitable for use with a VFD. Consulting with a qualified electrician or motor specialist is always a good idea.

Q: Are VFDs difficult to install and program?

A: Installation can be straightforward, but programming a VFD to meet specific application requirements can be a bit more complex. Most VFDs come with user manuals and software tools to assist with programming. However, if you're not comfortable working with electrical equipment, it's best to hire a qualified electrician to install and program the VFD for you.
