What Everybody Ought To Know About What Is An Acceptable Voltage Drop In A 12V Circuit

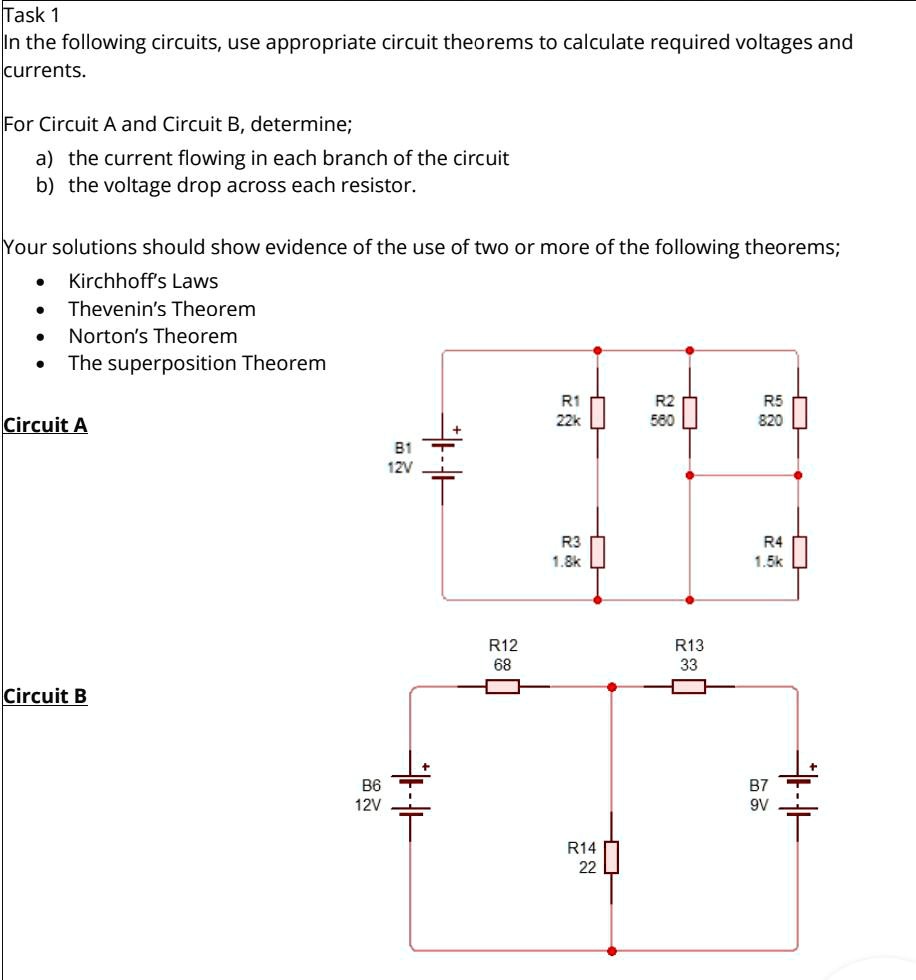

Understanding Voltage Drop in Your 12V World

1. Why Voltage Drop Matters

Ever noticed how your phone charges slower when you're using a cheap, long USB cable? That's voltage drop in action! It's the electrical equivalent of water pressure decreasing as it travels through a long pipe. In a 12V circuit, voltage drop is the reduction in electrical potential from the power source to the load (the thing using the power, like a light bulb or a motor). Think of it as the "energy tax" electricity pays as it travels along the wires. The longer the journey, the bigger the tax. And a bigger tax means less juice for the device at the end of the line. Not ideal, right?

So, why is this important? Because too much voltage drop can cause all sorts of problems. Dim lights, weak motors, and malfunctioning electronics are just a few of the potential headaches. Its like trying to bake a cake with a weak oven — you might get something vaguely cake-like, but it won't be quite right. Understanding voltage drop is crucial for ensuring your 12V systems are running efficiently and reliably. A healthy electrical system is a happy electrical system!

Consider your car's headlights. If there's excessive voltage drop in the wiring, your headlights won't shine as brightly, especially at night. This compromises visibility and, more importantly, safety. Similarly, in a boat's electrical system, a significant voltage drop could cause navigation lights to be dimmer than required, potentially leading to dangerous situations. The key to prevention is getting a handle on what's acceptable.

Imagine you're building a custom camper van with all the bells and whistles — lights, fridge, water pump, the whole shebang. You want everything to work optimally, and to do that, you need to understand voltage drop. It's not just about slapping some wires together and hoping for the best. It's about designing a system that delivers the right amount of power to each component. It's a detail that will save you headaches down the road. Literally!

What is Considered an Acceptable Voltage Drop? (Noun Phrase Alert!)

2. Defining "Acceptable"

Okay, here's the million-dollar question: what's an acceptable voltage drop (that's our key noun phrase!) in a 12V circuit? The straightforward answer? It depends. But dont click away just yet! Let's break it down. Generally speaking, a voltage drop of no more than 3% is considered ideal for critical circuits. Think of those vital systems that need consistent power, like your car's engine management system or essential lighting.

For less critical circuits, like interior lights or accessories, a voltage drop of up to 5% might be acceptable. It's a bit more lenient, but still important to keep in mind. These percentages represent the maximum allowable voltage drop from the power source to the load. So, if you're starting with 12V, a 3% drop means the voltage at the load should be no lower than 11.64V (12V - 3% of 12V). This ensures the device receives adequate power to function correctly.

However, these are just general guidelines. The specific requirements of the devices you're using should always be the primary consideration. Some sensitive electronics might require even tighter tolerances, while simpler devices might be more forgiving. Always consult the manufacturer's specifications for each component to determine the acceptable voltage range. This is where reading manuals and datasheets becomes your best friend. Or you can usually look it up on the product's website.

Why the percentage-based approach? Because it scales with the voltage. If you're working with a 24V system, a 3% drop allows for a larger absolute voltage drop than in a 12V system. This makes the percentage guideline more universally applicable across different voltage levels. Consider that the difference between a "good enough" drop and one that leaves you scratching your head is a matter of proper planning and execution of your project.

Factors That Influence Voltage Drop

3. Wiring, Length, and Current

Several factors contribute to voltage drop in a 12V circuit. The most significant are wire gauge (thickness), wire length, and the amount of current flowing through the wire. Think of it like a garden hose: a thin hose restricts water flow more than a thick one, a long hose causes more pressure loss than a short one, and a high flow rate increases the pressure drop. Electrical circuits behave in much the same way.

Wire gauge is directly related to the wire's resistance. Thicker wires have lower resistance, allowing more current to flow with less voltage drop. Longer wires, on the other hand, increase resistance, leading to greater voltage drop. Finally, higher current draws naturally increase voltage drop because more electrons are trying to squeeze through the wire at once. It's like rush hour on a tiny one-lane highway; things get congested, and energy gets lost along the way.

The material of the wire also plays a role. Copper is a better conductor than aluminum, so copper wires will have lower resistance for the same gauge and length. However, copper is also more expensive, so aluminum is sometimes used in certain applications. When choosing wire, it's crucial to consider all these factors to ensure you're using the right wire for the job. Undersized wire is a recipe for problems, so err on the side of caution. Like the rule of thumb says: better safe than sorry!

For instance, if you're wiring up a high-power amplifier in your car, you'll need to use a thick gauge wire to minimize voltage drop. A long run of thin wire will result in a significant voltage drop, causing the amplifier to perform poorly or even overheat. Similarly, in a solar power system, the wires connecting the solar panels to the charge controller need to be properly sized to prevent energy loss. Careful planning and attention to detail are essential for ensuring efficient power delivery.

Calculating Voltage Drop

4. Making Sure Your Math Adds Up

Calculating voltage drop isn't as daunting as it might seem. There are several online voltage drop calculators available that can simplify the process. These calculators typically require you to input the wire gauge, wire length, current draw, and voltage of the circuit. They'll then spit out the estimated voltage drop, allowing you to determine if it's within acceptable limits. It's like having a pocket-sized electrical engineer at your fingertips!

If you prefer to do the calculations yourself, you can use the following formula: Voltage Drop (Vd) = (2 L I R) / 1000, where L is the one-way wire length in feet, I is the current in amps, and R is the resistance of the wire per 1000 feet (this value can be found in wire gauge charts). This formula provides a reasonably accurate estimate of voltage drop in a DC circuit. Note that this is simplified for DC circuits. AC circuits have additional factors.

Let's say you're running a 10 amp circuit 25 feet using 14 AWG wire. Consulting a wire gauge chart, you find that 14 AWG wire has a resistance of approximately 2.525 ohms per 1000 feet. Plugging those values into the formula, you get: Vd = (2 25 10 2.525) / 1000 = 1.2625 volts. This means there will be a voltage drop of 1.2625 volts in the circuit. To determine if this is acceptable, calculate the percentage voltage drop: (1.2625 / 12) * 100 = 10.52%. In this case, the voltage drop is too high.

While calculators and formulas are helpful, it's always a good idea to verify your calculations with actual measurements. Use a multimeter to measure the voltage at the power source and at the load. The difference between the two readings is the actual voltage drop. This will help you catch any errors in your calculations or identify other issues that might be contributing to voltage drop. After all, theory and practice don't always perfectly align!

Practical Tips to Minimize Voltage Drop

5. Tricks of the Trade for a Healthier System

Alright, so you know what voltage drop is, why it matters, and how to calculate it. Now, let's talk about what you can do to minimize it. The most effective way is to use thicker wires. As we discussed earlier, thicker wires have lower resistance, which reduces voltage drop. It's a simple and straightforward solution, although it might be slightly more expensive.

Another effective strategy is to shorten the wire runs. The shorter the wire, the less resistance, and the less voltage drop. Try to position the power source as close as possible to the load, or use multiple power sources to distribute the power more evenly. This is especially important in larger systems with multiple devices.

Proper connections are also crucial. Loose or corroded connections can significantly increase resistance, leading to voltage drop. Use high-quality connectors and ensure they're properly crimped or soldered. Regular maintenance is also important to keep connections clean and tight. A little bit of preventative maintenance can go a long way in preventing voltage drop issues.

Finally, consider using a higher voltage system. While this article focuses on 12V systems, moving to a 24V or 48V system can significantly reduce voltage drop. This is because higher voltage systems require less current to deliver the same amount of power. Less current means less voltage drop. This is a more complex solution, but it can be worth considering in certain applications, especially those involving long wire runs or high power demands. Don't be afraid to think outside the box!

FAQ

Still have questions about voltage drop? Here are a few frequently asked questions to help clear things up:

6. Q

A: If the voltage drop is too high, the device at the end of the circuit won't receive enough power to operate correctly. This can lead to dim lights, weak motors, malfunctioning electronics, or even complete failure of the device. It's like trying to run a marathon on an empty stomach; you won't get very far!

7. Q

A: Yes, running multiple wires in parallel effectively increases the wire gauge, reducing resistance and voltage drop. However, it's crucial to ensure that all the wires are the same length and gauge, and that they're properly connected at both ends. Otherwise, one wire might end up carrying most of the current, defeating the purpose.

8. Q

A: Voltage drop is a concern in both DC and AC circuits. However, the calculations are slightly different. In DC circuits, the calculations are straightforward, as we discussed earlier. In AC circuits, you need to consider additional factors like impedance and power factor, which can complicate the calculations. But the underlying principle remains the same: minimize voltage drop to ensure efficient power delivery.
